Intel LGA-1151 ATX mining motherboard with 19 PCIe slots, Triple-ATX12V power delivery, voltage-stabilization capacitors, and mining mode design

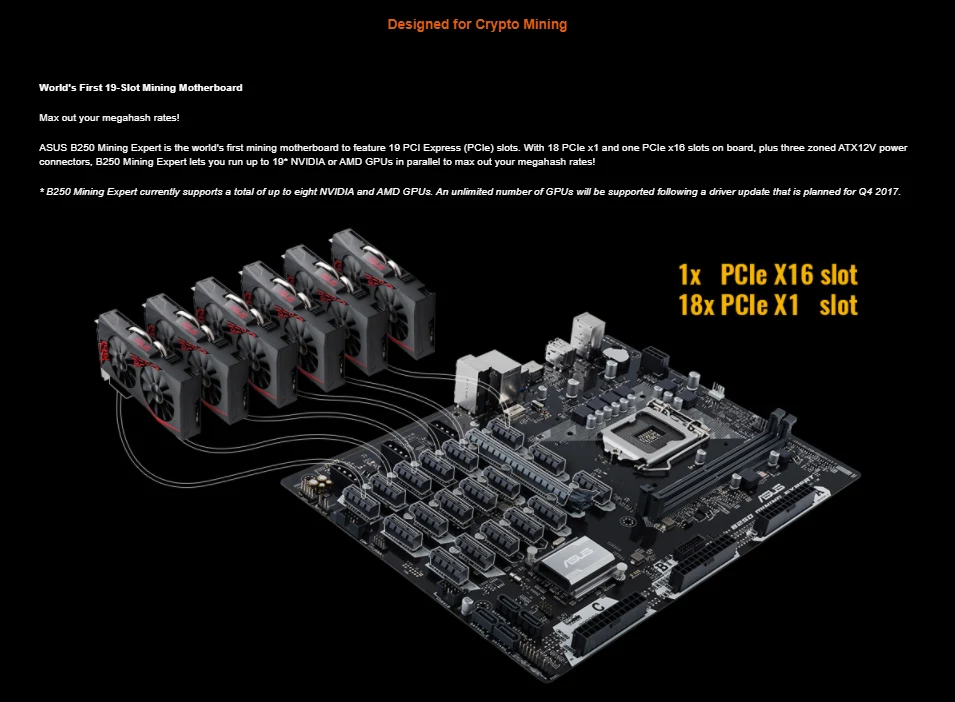

World’s first 19-slot motherboard for multi-GPU mining

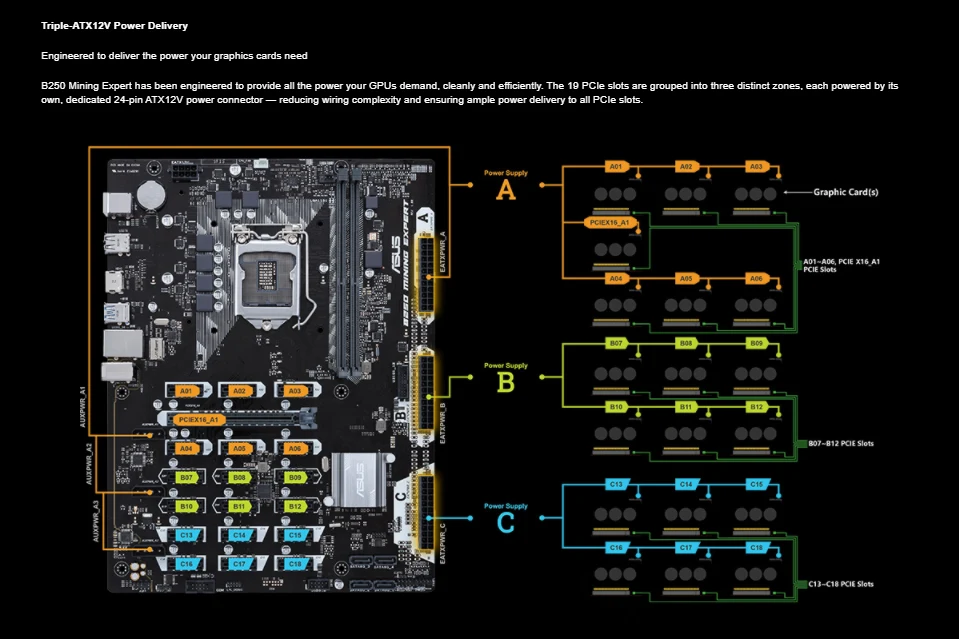

Exclusive triple-ATX12V design and 19 decoupling capacitors for stable power delivery
ASUS PCIe Slot State Detection indicates the status of each GPU connection for easy management and debugging
Unique Mining Mode for hassle-free setup of your mining rig — no BIOS tweaks required
Intel LAN and LANGuard for the best network performance
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.
VGA output support : HDMI port
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
Maximum shared memory of 1024 MB
18 x PCIe x1
6 x USB 3.1 Gen 1 port(s) (4 at back panel, , Type-A, 2 at mid-board)
Intel® B250 Chipset :
4 x USB 2.0/1.1 port(s) (2 at back panel, , 2 at mid-board)
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage

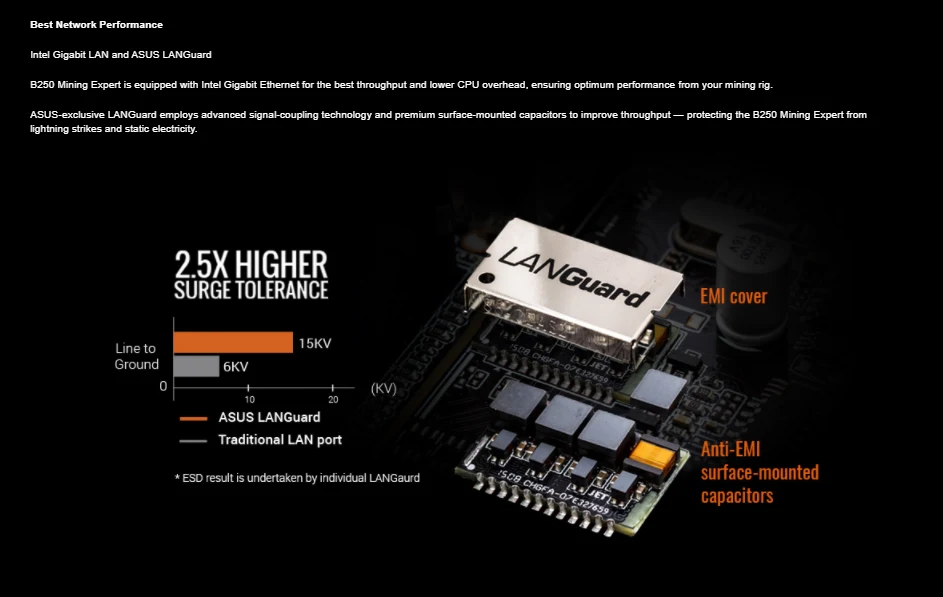

- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design

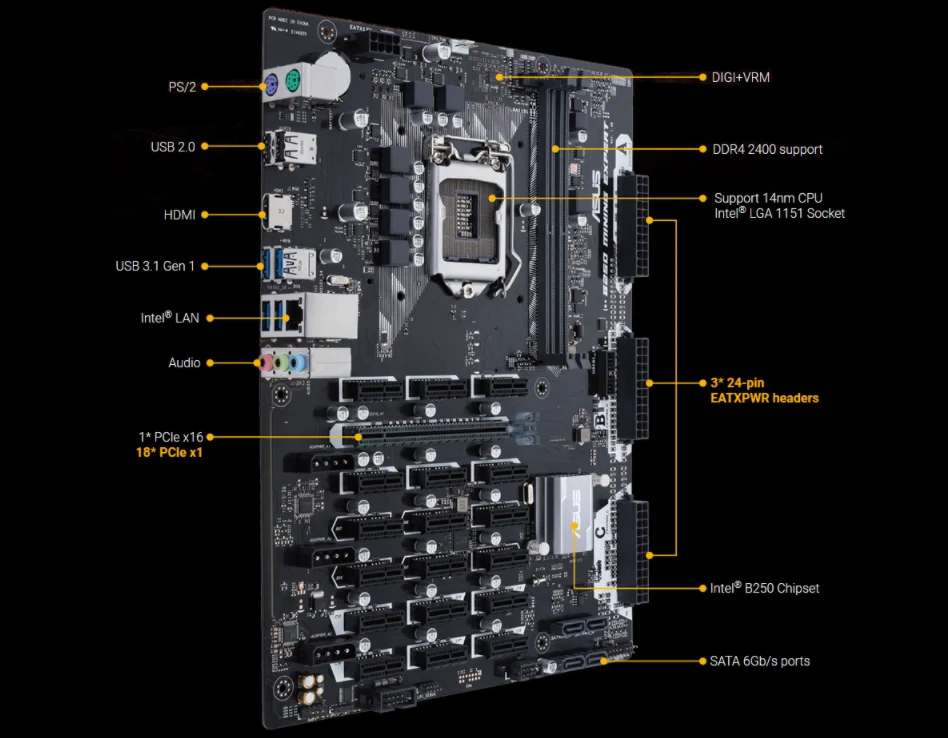

Back I/O Ports
1 x PS/2 mouse (green)
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
3 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
3 x 4-pin AUXPWR Header
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
Windows® 7 64-bit *1
12 inch x 9.1 inch ( 30.5 cm x 23.1 cm )
