The STARLINK Mini Kit AC Dual Band Wi-Fi System in White is a compact and portable satellite internet solution designed to provide high-speed, low-latency connectivity on the go. Its lightweight design allows it to fit easily into a backpack, making it ideal for travelers, remote workers, and those in areas with limited internet access.
Specification
| Physical Specifications |
|
| Antenna Type: |
Electronic Phased Array |
| Field of View: |
110° |
| Orientation: |
Software-Assisted Manual |
| Antenna Weight: |
|
| Package Dimensions: |
430 x 334 x 79 mm (16.92 x 13.14 x 3.11 in) |
| Package Weight: |
6.73 kg (14.83 lbs) |
| Connectivity & Networking |
|
| Wi-Fi Standard: |
802.11a/b/g/n/ac (Wi-Fi 5) |
| Radio: |
Dual Band 3x3 MU-MIMO |
| Ethernet Ports: |
1 Latching Ethernet LAN port with Starlink Plug |
| Coverage Area: |
Up to 112 m² (1,200 ft²) |
| Security Protocol: |
WPA2 |
| Device Capacity: |
Supports up to 128 connected devices |
| Mesh Compatibility: |
Compatible with all Starlink mesh systems (not compatible with third-party mesh systems) |
| Power & Environmental |
|
| Power Consumption: |
Average 25–40W |
| Input Rating: |
12–48V, 60W |
| USB PD Requirement: |
100W, 20V/5A minimum (with Starlink USB-C to Barrel Jack Cable Accessory) |
| Operating Temperature: |
-30°C to 50°C (-22°F to 122°F) |
| Environmental Rating: |
IP67 Type 4 (with DC power cable and Starlink plug/cable installed) |
| Wind Resistance: |
Operational at 96 kph+ (60 mph+) |
| Snow Melt Capability: |
Up to 25mm/hour (1 in/hour) |
| Power Supply Unit |
|
| Dimensions: |
91 x 44 x 51 mm (3.6 x 1.7 x 2.0 in) |
| Weight: |
0.2 kg (0.44 lbs) |
| Environmental Rating: |
IP66 Type 4 |
| Operating Temperature: |
-30°C to 50°C (-22°F to 122°F) |
| Power Specifications: |
100–240V ~ 1.6A, 50–60 Hz |

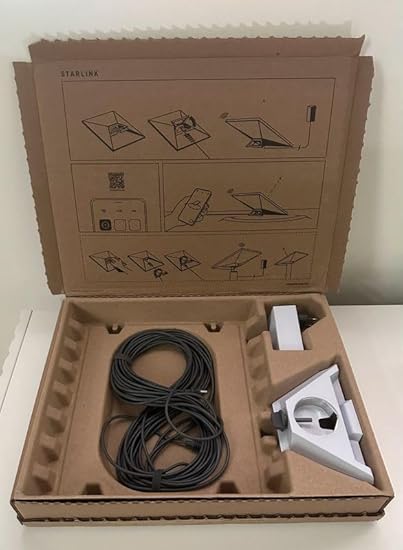

| Included in the Box |
-
Starlink Mini Antenna with Kickstand
-
15m (49.2 ft) Starlink Cable
-
Power Supply Unit
-
Pipe Adapter for versatile mounting options
|
Ideal Use Cases
- Remote Work: Stay connected in rural or underserved areas.
- Travel: Reliable internet for RVs, boats, and camping trips.
- Emergency Backup: Maintain connectivity during outages or in disaster-prone regions.
- Off-Grid Living: Internet access in locations without traditional infrastructure.
