Description
Intel H81
4th Generation Core i7/Core i5/Core i3/Pentium/Celeron
DDR3 1600/1333/1066

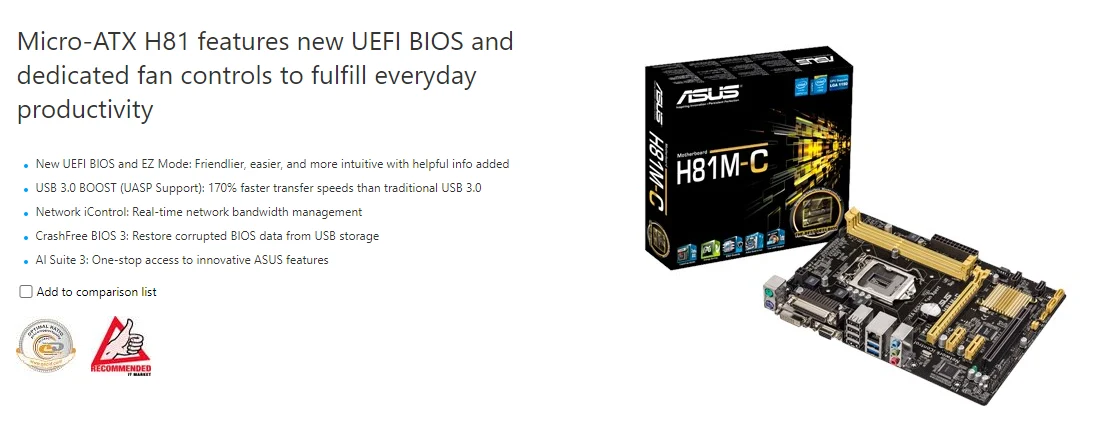

LEARN MORE ABOUT THE ASUS H81M-C/CSM/C/SI-R
| Brand | ASUS |
|---|---|
| Model | H81M-C/CSM/C/SI-R |
| CPU Socket Type | LGA 1150 |
|---|---|
| CPU Type | 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel H81 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2×240pin |
|---|---|
| Memory Standard | DDR3 1600/1333/1066 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 2(PCIe 2.0) |
| PCI Slots | 1 x PCI Slot |
| SATA 3Gb/s | 2 x SATA 3Gb/s |
|---|---|
| SATA 6Gb/s | 2 x SATA 6Gb/s |
| Audio Chipset | Realtek ALC887-VD |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek RTL8111G |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
| PS/2 | 1 x PS/2 keyboard 1 x PS/2 mouse |
|---|---|
| LPT | 1 |
| Video Ports | 1 x DVI-D 1 x D-Sub |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x TPM header 1 x COM port(s) connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Clear CMOS jumper(s) |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 7.0" |
| Power Pin | 24 Pin |

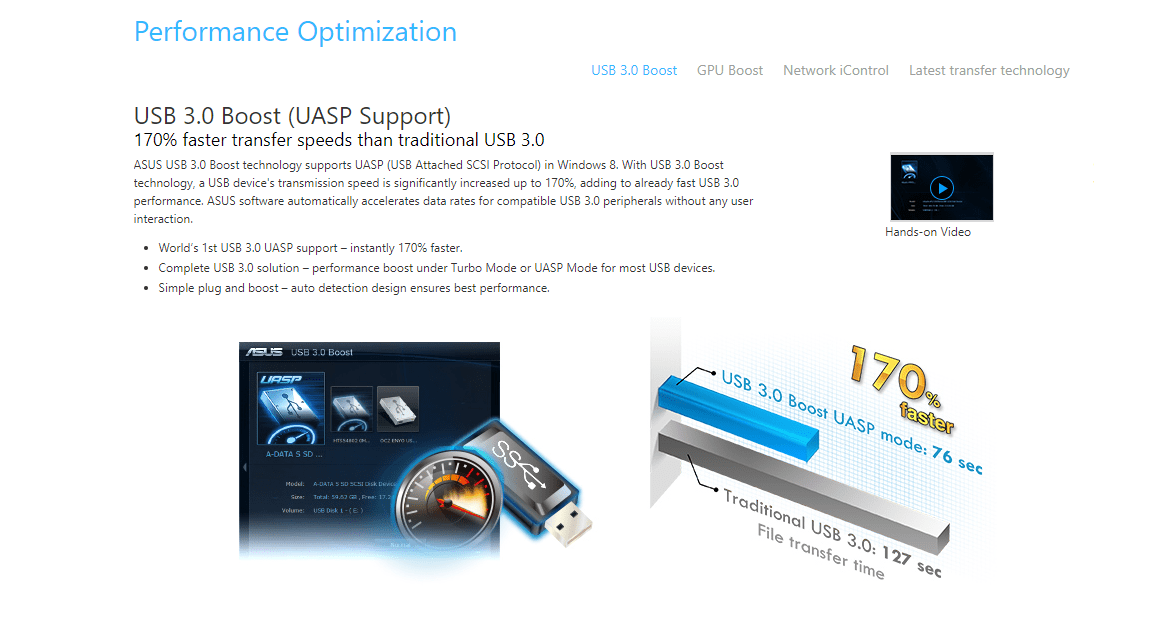

| Features | ASUS EPU : -EPU ASUS Exclusive Features : -GPU Boost -AI Suite 3 -Ai Charger -Anti-Surge -ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface -Network iControl -USB 3.0 Boost ASUS Quiet Thermal Solution : -ASUS Fan Xpert ASUS EZ DIY : -ASUS CrashFree BIOS 3 -ASUS EZ Flash 2 -ASUS MyLogo 2 ASUS Q-Design : -ASUS Q-Slot 100% All High-quality Conductive Polymer Capacitors |
|---|
| Date First Available | June 09, 2015 |
|---|
