Description

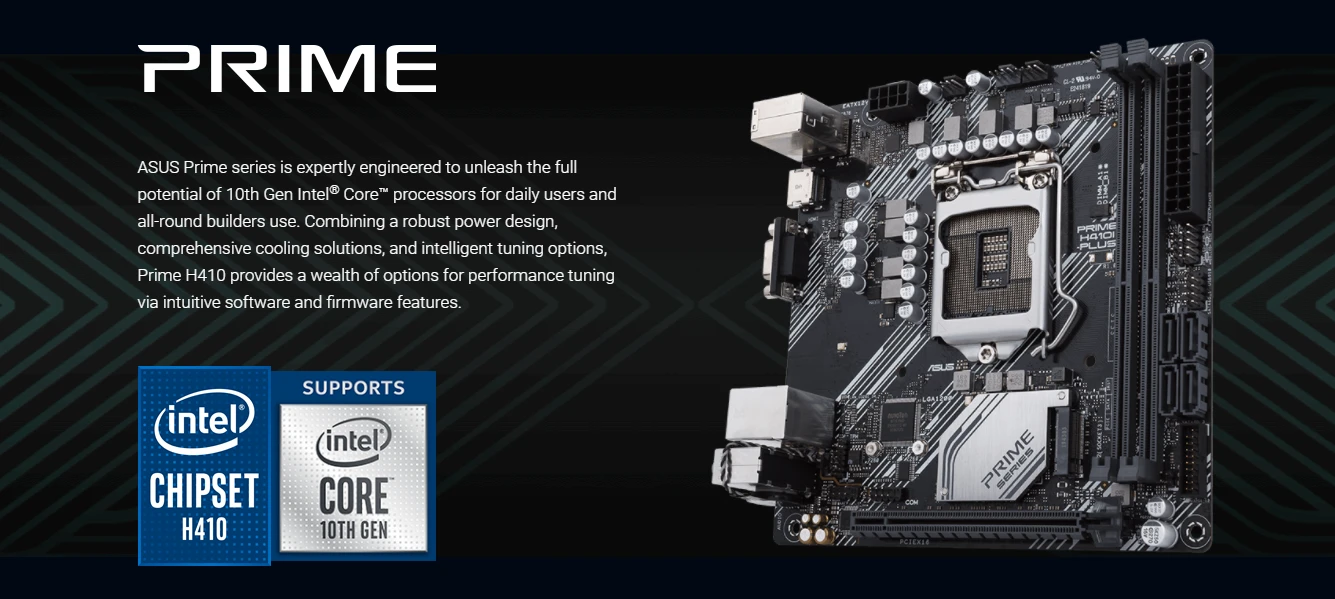

Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors

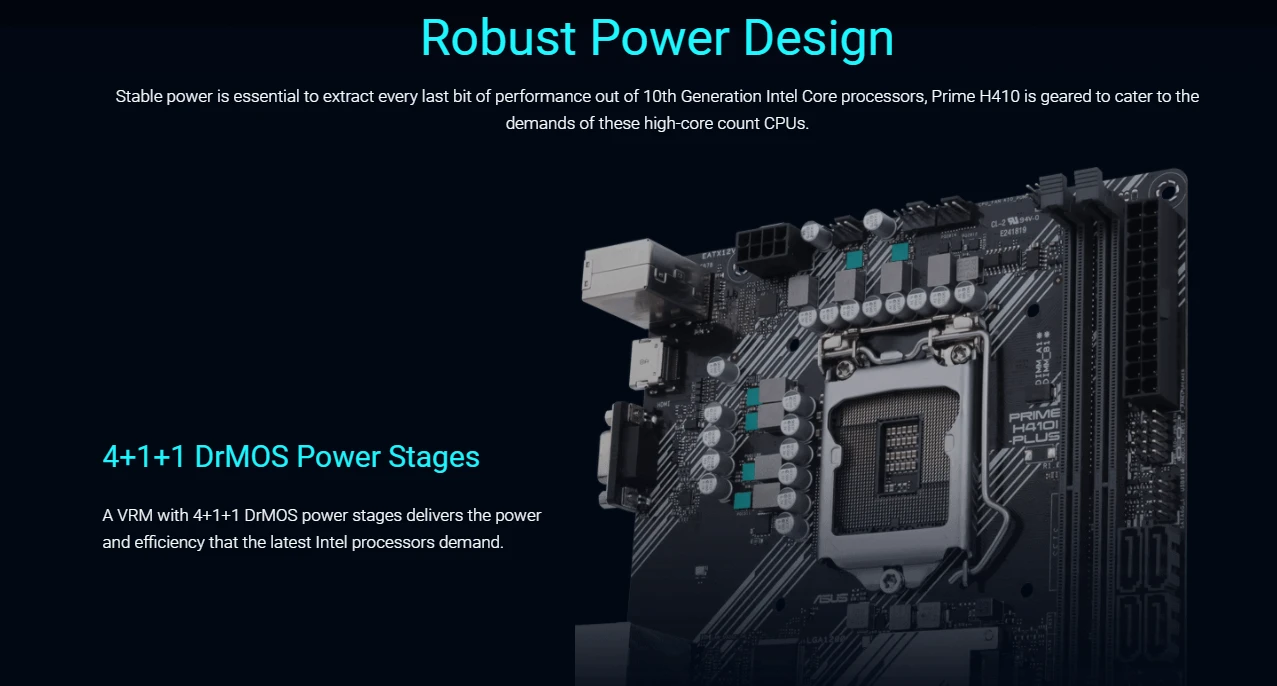

Enhanced power solution: 4+1+1 DrMOS power stages, 8-layer PCB, for stable power delivery
ASUS OptiMem II: Careful routing of traces and vias to preserve signal integrity for improved memory stability.
Fan Xpert 4: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming.
5X Protection III: Multiple hardware safeguards for all-round protection.
CPU
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
*Supports up to 65W CPUs. For more details, please refer to www.asus.comfor Intel® CPU support list.
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
*Supports up to 65W CPUs. For more details, please refer to www.asus.comfor Intel® CPU support list.
Chipset
Intel® H410
Memory
Intel® H410 Chipset
2 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
2 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Graphic
Integrated Graphics Processor- Intel® UHD Graphics support
1 x HDMI 1.4b
1 x D-Sub
*Graphics specifications may vary between CPU types.
1 x HDMI 1.4b
1 x D-Sub
*Graphics specifications may vary between CPU types.
Expansion Slots
16-Lane CPU-
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (x16 mode)
Storage
Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
Intel® H410 Chipset :
1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode)
4 x SATA 6Gb/s port(s)
Intel® H410 Chipset :
1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode)
4 x SATA 6Gb/s port(s)
LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard
Audio
Realtek® ALC887 7.1-Channel High Definition Audio CODEC *
- Supports : Jack-detection, up to 24-Bit/192kHz playback
Audio Feature :
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
- Supports : Jack-detection, up to 24-Bit/192kHz playback
Audio Feature :
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports
Rear USB Port ( Total 4 )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(2 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 4 )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
2 x USB 2.0 port(s)
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(2 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 4 )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
2 x USB 2.0 port(s)
Software Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 4
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 4
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Special Features
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-Connector
- ASUS Q-DIMM
- ASUS Q-Slot
- ASUS Q-Connector
- ASUS Q-DIMM
- ASUS Q-Slot
- ASUS Q-Connector
- ASUS Q-DIMM
- ASUS Q-Slot
AURA Sync
- Aura RGB header(s)
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-Connector
- ASUS Q-DIMM
- ASUS Q-Slot
- ASUS Q-Connector
- ASUS Q-DIMM
- ASUS Q-Slot
- ASUS Q-Connector
- ASUS Q-DIMM
- ASUS Q-Slot
AURA Sync
- Aura RGB header(s)

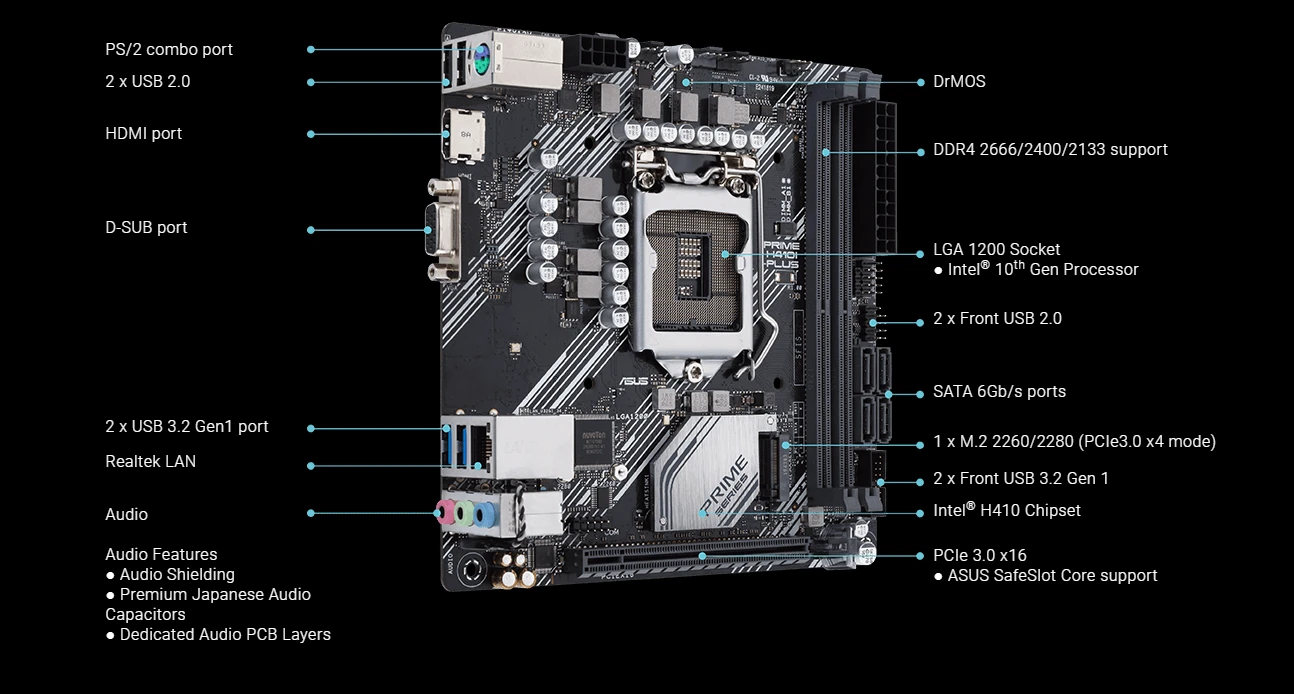

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x Speaker connector
1 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x Speaker connector
Accessories
User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Operating System
Windows® 10 64-bit
Form Factor
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )
6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )
