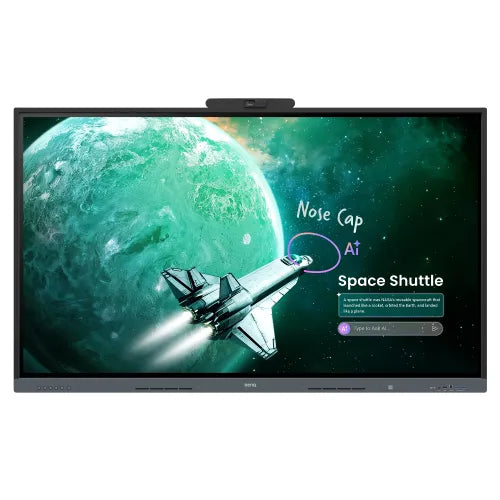

BenQ RE8605AC 86" 4K UHD Interactive Flat Panel Display
The BenQ RE8605AC 86" 4K UHD Interactive Flat Panel Display is a large-format interactive display designed for modern classrooms, training centers, meeting rooms, conference rooms, universities and collaborative workplaces. With a massive 86-inch 4K UHD screen, high-precision IR touch technology, powerful built-in audio, an integrated camera and Android 16 EDLA, it provides an all-in-one platform for interactive teaching, presentations and collaboration.
Its 3840 × 2160 4K UHD resolution, 10-bit color depth, 72% NTSC color gamut and 500-nit brightness deliver detailed and vibrant visuals. The display supports up to 50 touch points with a touch response time of less than 5 ms, allowing multiple users to interact naturally with digital content at the same time.
Powered by an 8-core Arm Cortex processor, 8GB RAM and 128GB internal storage, the RE8605AC runs Android 16 with EDLA and provides a responsive platform for applications, digital whiteboarding and collaboration. The display also includes EZWrite 6, InstaShare 2, AMS, DMS and X-Sign Broadcast software solutions.
For online meetings and collaborative sessions, the RE8605AC features a built-in 50MP camera and an 8-microphone array with a pickup range of up to 12 meters. Its audio system combines 2 × 12W speakers and 2 × 30W subwoofers for clear and powerful sound.
The display provides extensive connectivity including HDMI 2.0, USB-A, USB-C with 65W Power Delivery, USB-B touch ports, Ethernet, optical audio, RS-232 and an OPS slot. Wi-Fi and Bluetooth are supported through optional connectivity hardware depending on configuration and region.
With a 9H tempered anti-glare screen, nano-ionic silver germ-resistant technology, Low Blue Light and Flicker-Free features, the BenQ RE8605AC is designed for comfortable and reliable use in professional educational and workplace environments.
BenQ RE8605AC 86" Full Specifications
| Panel |
| Model |
RE8605AC |
| Screen Size |
86 Inches |
| Panel Type |
VA |
| Resolution |
UHD 3840 × 2160 Pixels |
| Active Area |
1895.0 × 1066.0 mm |
| Aspect Ratio |
16:9 |
| Response Time |
6.5 ms |
| Brightness |
500 nits |
| Contrast Ratio |
5500:1 |
| Dynamic Contrast Ratio |
50,000:1 |
| Color Depth |
10-bit |
| Color Gamut |
72% NTSC |
| Orientation |
Landscape |
| Backlight Life |
50,000 Hours |
| Operation Hours |
18 Hours / 7 Days |
| Glass & Protection |
| Glass Hardness |
9H Tempered Glass |
| Anti-Glare |
Yes |
| Germ-Resistant Technology |
Nano-Ionic Silver* |
| Touchscreen |
| Touch Technology |
High Precision IR |
| Touch Points |
Up to 50 Points |
| Touch Response Time |
< 5 ms |
| System |
| CPU |
Arm Cortex-A72 × 4 + A53 × 4 |
| GPU |
Arm Mali-G52 MC3 |
| RAM |
8 GB |
| Storage |
128 GB |
| Operating System |
Android 16 (EDLA) |
| Connectivity |
| USB-C |
1 × USB 3.0, PD 65W |
| USB Type-B Touch |
2 × USB 2.0 |
| USB Type-A |
3 × USB 3.0 + 1 × USB 2.0 |
| HDMI Input |
3 × HDMI 2.0 |
| HDMI Output |
1 × HDMI 2.0 |
| Microphone Input |
1 × 3.5 mm Microphone Jack |
| Audio Output |
1 × 3.5 mm Audio Out |
| S/PDIF |
1 × Optical Out |
| RS-232 |
1 |
| OPS Slot |
1 × OPS Slot for Slot-In PC |
| Ethernet |
10/100/1000 Mbps |
| Wi-Fi |
Optional |
| Bluetooth |
Optional |
| Built-in Peripherals |
| Ambient Light Sensor |
Yes |
| IR Sensor |
Yes |
| NFC Sensor |
Yes |
| Speakers |
2 × 12W |
| Subwoofers |
2 × 30W |
| Microphone |
8-Microphone Array, up to 12m / 39ft |
| Built-in Camera |
50MP |
| Power |
| Power Supply |
AC 100–240V, 50/60Hz |
| Typical Power Consumption |
115.2W |
| Standby Power Consumption |
< 0.5W |
| ENERGY STAR |
Yes |
| Physical |

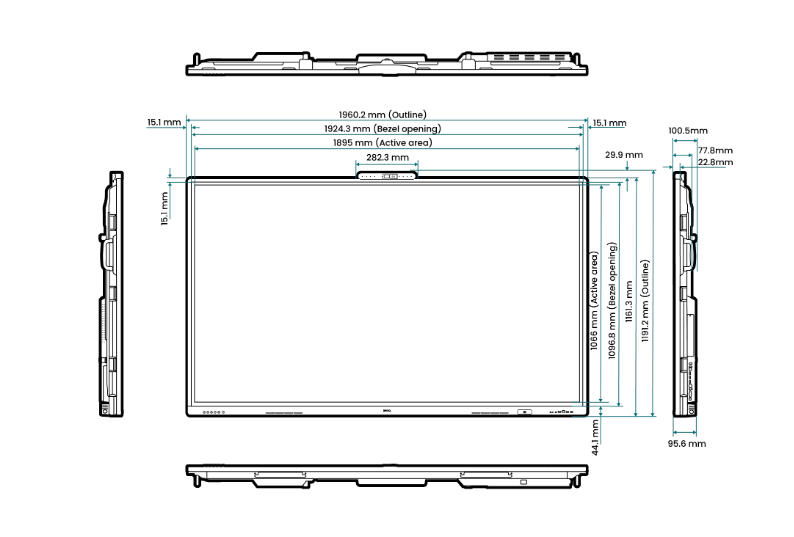

| Product Dimensions (W × H × D) |
1960.2 × 1191.2 × 100.5 mm |
| Dimensions in Inches |
77.2 × 46.9 × 3.9 in |
| Product Weight |
56.5 kg / 124.5 lbs |
| Shipping Weight |
65.5 kg / 144.4 lbs |
| VESA Mount |
800 × 600 mm, 4 × M8 × 25L |
| Environmental |
| Operating Temperature |
0°C–40°C / 32°F–104°F |
| Storage Temperature |
-10°C–60°C / 14°F–140°F |
| Operating Humidity |
20%–80% RH, non-condensing |
| Storage Humidity |
10%–80% RH, non-condensing |
| Software |
| Whiteboarding |
EZWrite 6 |
| Wireless Screen Sharing |
InstaShare 2 |
| Account Management |
AMS |
| Device Management |
DMS |
| Quick Access Tool |
Floating Tool |
| Broadcast System |
X-Sign Broadcast |
| Included Accessories |
| HDMI Cable |
1 × HDMI Cable, 3m |
| Touch USB Cable |
1 × Touch USB Cable, 3m |
| Touch Pens |
2 |
| Wall Mount |
1 |
| Remote Control |
1 |
| Warranty |
3 Years |
Why Should You Buy the BenQ RE8605AC?
-
86-Inch 4K UHD Display: Enjoy a huge 3840 × 2160 resolution screen for detailed presentations, lessons and collaborative content.
-
Up to 50-Point Touch: High Precision IR technology enables multiple users to write, interact and collaborate simultaneously.
-
Powerful Android 16 Platform: Android 16 with EDLA, 8GB RAM and 128GB storage provides a capable built-in computing platform.
-
Built-in 50MP Camera: The integrated high-resolution camera is useful for video meetings, remote teaching and collaborative sessions.
-
Powerful Audio: Dual 12W speakers combined with dual 30W subwoofers provide an integrated audio solution.
-
Large Microphone Array: The 8-microphone array supports pickup from distances of up to 12 meters / 39 feet.
-
Extensive Connectivity: HDMI, USB-A, USB-C 65W PD, USB-B touch, Ethernet, optical audio, RS-232 and OPS connectivity make it suitable for different setups.
-
Durable Interactive Surface: 9H tempered glass and anti-glare treatment are designed for demanding educational and professional environments.
-
Classroom & Collaboration Software: EZWrite 6, InstaShare 2, AMS, DMS and X-Sign Broadcast support teaching, presentation, screen sharing and device management.
-
Professional Installation Support: The display supports VESA 800 × 600 mm mounting for suitable wall installation setups.
Frequently Asked Questions
1. What is the screen size and resolution of the BenQ RE8605AC?
The BenQ RE8605AC features an 86-inch display with UHD 4K resolution of 3840 × 2160 pixels and a 16:9 aspect ratio.
2. How many touch points does the RE8605AC support?
The display uses High Precision IR touch technology and supports up to 50 simultaneous touch points with a touch response time of less than 5 milliseconds.
3. What operating system does the BenQ RE8605AC use?
The RE8605AC runs Android 16 with EDLA certification and is equipped with 8GB RAM and 128GB internal storage.
4. Does the BenQ RE8605AC have a built-in camera and microphone?
Yes. It includes a built-in 50MP camera and an 8-microphone array with a stated pickup range of up to 12 meters / 39 feet.
5. Is the BenQ RE8605AC suitable for classrooms and meeting rooms?
Yes. Its large 86-inch 4K display, multi-touch capability, built-in camera and microphone, powerful audio, wireless screen-sharing support, whiteboarding tools and extensive connectivity make it suitable for classrooms, training rooms, meeting rooms, conference rooms and collaborative workspaces.
