Description
80 Plus Bronze: Runs cooler and uses less power than less efficient power supplies
5-year warranty: Backed by Corsair’s legendary technical support and customer service
Black housing, cable sleeving and connectors: Give your build the high-end look without breaking the bank

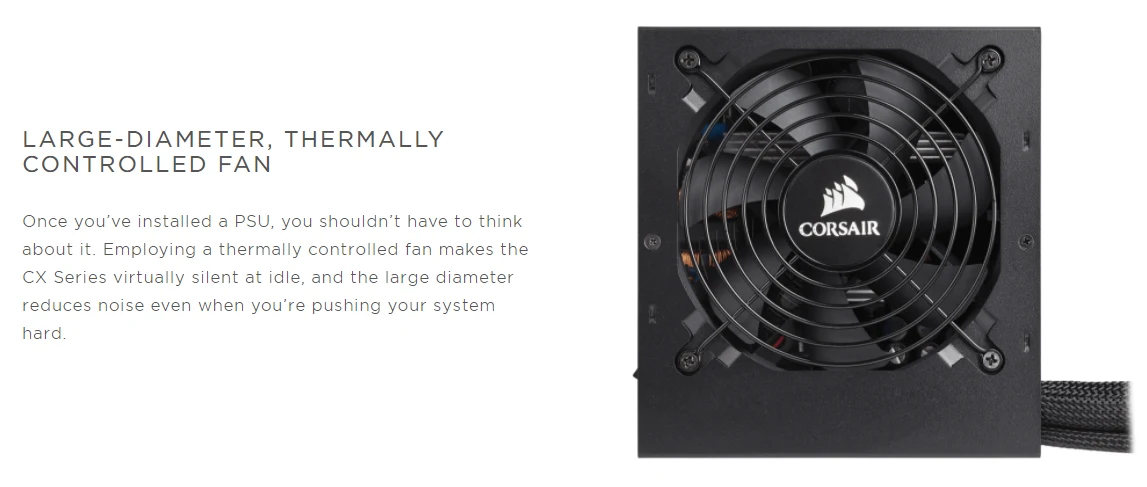

Thermally controlled 120mm fan: Quiet operation across a wide range of loads
LLC resonant topology with DC to DC: Ensures improved efficiency at lower loads and compatibility with all modern day chipsets and CPUs.
LEARN MORE ABOUT THE CORSAIR CP-9020122-NA
| Brand | CORSAIR |
|---|---|
| Series | CX Series CX650 |
| Model | CP-9020122-NA |
| Type | ATX12V / EPS12V |
|---|---|
| Maximum Power | 650W |
| Fans | 1 x 120mm Thermally Controlled Rifle Bearing Fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 2 x 6+2-Pin |
| SATA Power Connector | 6 |
| Modular | Non-Modular |
| Energy-Efficient | 80 PLUS BRONZE Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 6.3 - 3.15A |
| Output | +3.3V@25A, +5V@25A, +12V@54A, -12V@0.8A, +5VSB@3A |
| MTBF | 100,000 hours |
| Approvals | FCC, ICES, CE, UL, cUL, RCM, TUV, CB, CCC, BSMI, EAC, RoHS, WEEE, KC |
| Dimensions | 3.39" x 5.51" x 5.91" |
| Max PSU Length | 140 mm |
| Weight | 3.86 lbs. |

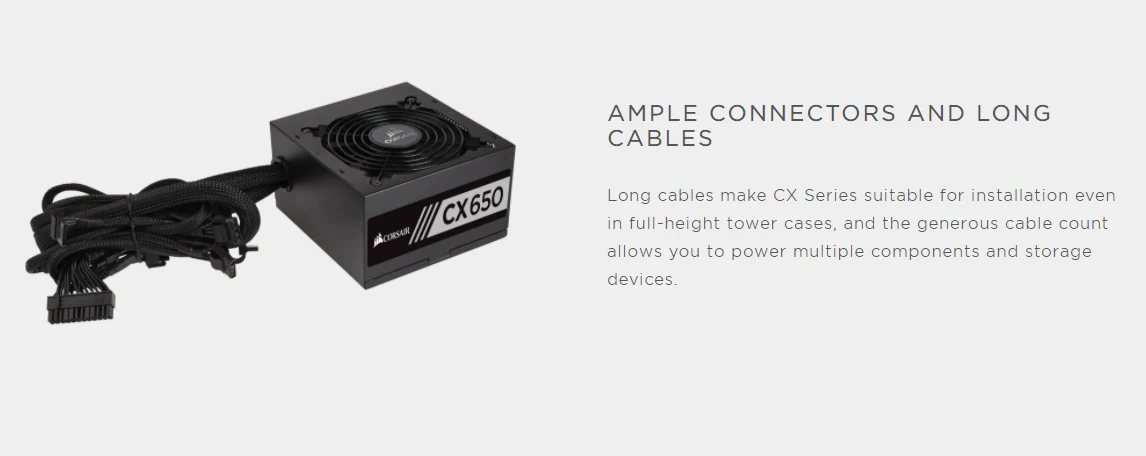

| Connectors | 1 x ATX Connector 1 x EPS Connector 2 x PCIe Connector 6 x SATA Connector 4 x Four-Pin Peripheral Connector |
|---|---|
| Features | Active PFC with full range AC input (100 - 240 VAC). 120mm thermally controlled rifle bearing fan. Engineered to meet maximum power output at a 40 Degree C temperature rating. Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components. |
| Package Content | CX Series ATX Power Supply Power Cord 4x Mounting Screws Pack of Zip-ties Warranty Document |
| Date First Available | March 09, 2017 |
|---|
