Description

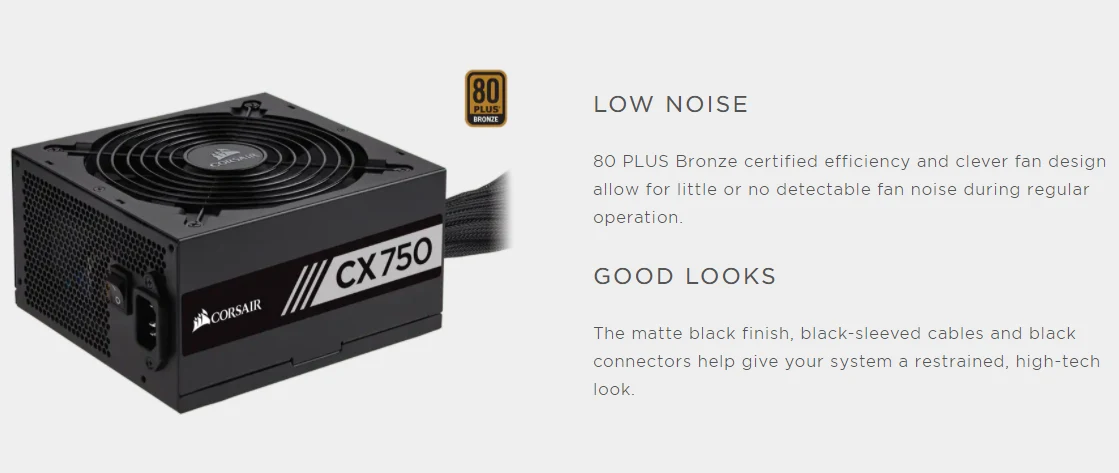

80 Plus Bronze: Runs cooler and uses less power than less efficient power supplies
5-year warranty: Backed by Corsair’s legendary technical support and customer service
Black housing, cable sleeving and connectors: Give your build the high-end look without breaking the bank

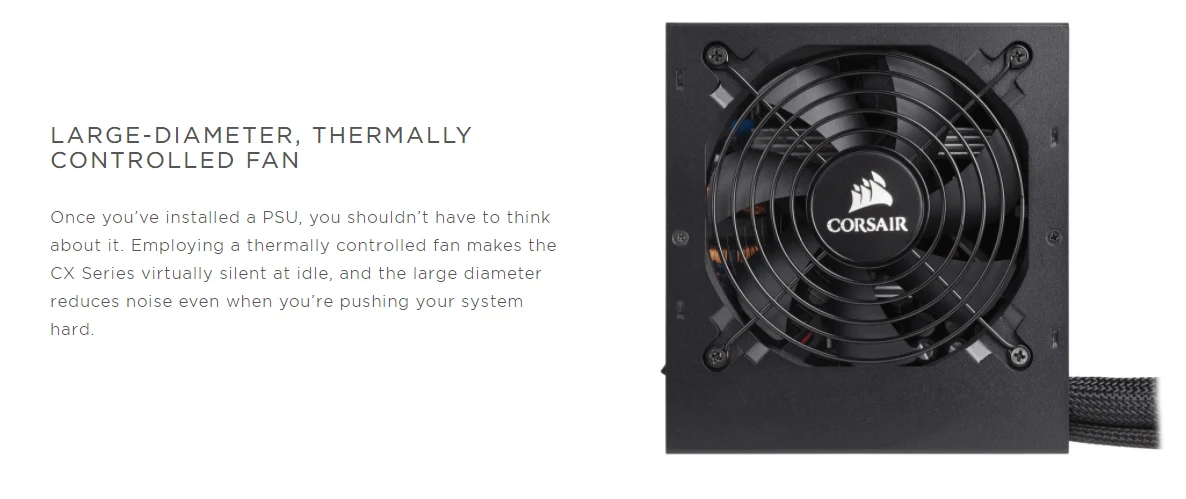

Thermally controlled 140mm fan: Quiet operation across a wide range of loads
LLC resonant topology with DC to DC: Ensures improved efficiency at lower loads and compatibility with all modern day chipsets and CPUs.
LEARN MORE ABOUT THE CORSAIR CP-9020123-NA
| Brand | CORSAIR |
|---|---|
| Series | CX Series CX750 (New) |
| Model | CP-9020123-NA |
| Type | ATX12V |
|---|---|
| Maximum Power | 750W |
| Fans | 1 x 140mm thermally controlled rifle bearing fan |
| PFC | Active |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 4 x 6+2-Pin |
| SATA Power Connector | 8 |
| Modular | Non-Modular |
| Energy-Efficient | 80 PLUS BRONZE Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 12 - 6 A |
| Output | +3.3V@25A, +5V@25A, +12V@62.5A, -12V@0.8A, +5VSB@3A |
| Approvals | FCC, ICES, CE, UL, cUL, RCM, TÜV, CB, CCC, BSMI, EAC, RoHS, WEEE, KC |
| Dimensions | 3.39" x 5.91" x 6.30" |
| Max PSU Length | 160 mm |
| Weight | 4.70 lbs. |

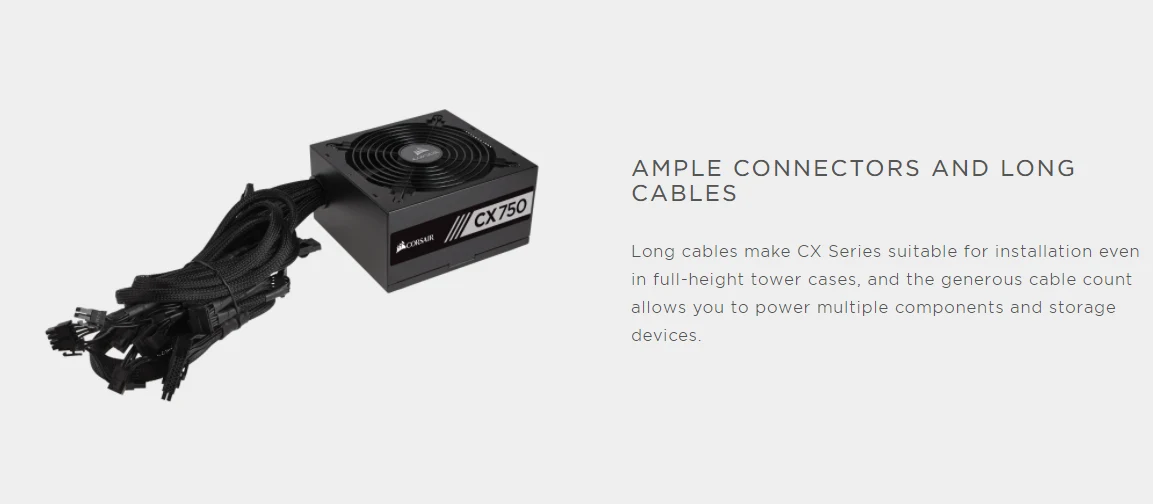

| Connectors | 1 x 24-pin ATX Cable 1 x EPS12V/ATX12V Cable (4+4) 4 x PCIe Cable (6+2) 8 x SATA Cable 8 x PATA Cable |
|---|---|
| Features | 80 Plus Bronze: Runs cooler and uses less power than less efficient power supplies Black housing, cable sleeving and connectors: Give your build the high-end look without breaking the bank Thermally controlled 140mm fan: Quiet operation across a wide range of loads LLC resonant topology with DC to DC: Ensures improved efficiency at lower loads and compatibility with all modern day chipsets and CPUs. Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components |
| Package Content | CX Series ATX Power Supply Power Cord 4 x Mounting Screws Pack of Zip-ties Warranty Document |
| Date First Available | January 30, 2020 |
|---|
