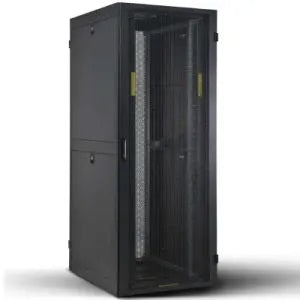

TOTEN Professional 42U Server Rack / Equipment Rack / Cabinet / Enclosure – 42U, 19″ (W800 x D1000 x H2055mm) ASE81042.
Standard Scope of Supply
- Full Vented Top Frame with Front / Rear / Side Cable Entrance
- 6 x 4-inch Top Fan Tray with Guard & Filter (Low Noise)
- 2 x Lift Off Type Side Door with Quick Release Catch & Cam Lock
- 1 x Perforated (75%) Arc-Fold Front Door with Swing Handle Lock (Hexagon Honey-Comb)
- 1 x Double-section Full Perforation Rear Door with Swing Handle Lock (Hexagon Honey-Comb)
- 2 x Front Cable management c/w Cable Ring
- 1 x Vertical Cable Tray
- 1 x Set Panel Mount Support
- 4 x Panel Mount with Unit Indication & Silk Screen Numbering
- 1 x Base Frame with Provision of Cable Entrance
- 1 x Set of Heavy Duty Castor Wheels
- 1 x Set of Leveling Stand
- 2 x Vented Equipment Fixed Tray
- 1 x Power Distribution Unit (12 Way Vertical ZeroU PDU) with 13A UK-Type Sockets
- 1 Packet of M6 Cage Nuts Assembly (50pcs)
- Finish with Epoxy Powder Coating (RAL 9004 Black)
Features
- Installation Ready – includes trays, power strip, ventilation fan tray & cagenuts assembly
- Robust main frame construction with multiple bendings
- Front Perforated Arc Door for Maximum ventilation
- Full 75% Honeycomb double-section perforation Rear Door for maximised ventilation
- Easy removable Front/ Rear/ Side doors, allowing access at all lateral sides
- Hassle-free side-by-side racks-baying feature
- Modular cable-entry removable plates for various requirements at Top & Bottom Panels
- Up to IP20 protection
- Load rating at 800kg
- Various doors & panels options
- Colour- Fully powder coated (RAL9004 Black)
Materials
- SPCC Cold Rolled Steel
- Thickness: Mounting Profile 2.0mm, 19-inch Panel Mounting 1.5mm, Others 1.2mm
Compliance:
• Comply with ANSI/EIA RS-310-D, IEC297-2, DIN 41491; PART 1 DIN 41494; PART 7, GB/T 3047.2-92, ETSI Standard.
Brand: TOTEN
Model: W2.6612.9001
Size: 600 X 600 mm
TOTEN 9U Wall Mount Server Cabinet (Glass Door)
TOTEN Standard 9U Wall Mount Rack / Cabinet / Enclosure
What is the price of TOTEN 42U Network server rack cabinet 800mmx1000mm in Bangladesh?
The latest price of TOTEN 42U Network server rack cabinet 800mmx1000mm in Bangladesh is 68,000?. You can buy the TOTEN 42U Network server rack cabinet 800mmx1000mm at best price from our website or visit any of our showrooms. You can buy TOTEN Server Rack at best price from our website: ayota.com.bd or visit any of our showrooms. Get the Server Rack with regular price available for hot sell all over BD.
Specification
| 1 |
Brand |
Vivanco |
| 3 |
Country of Origin |
Germany |
| 4 |
Country of Manufacturer |
China |
| 5 |
Standards |
ANSI/EIA RS-310-D, IEC60297-2, DIN41494 PART1, DIN41494 PART7 |
| 6 |
Size & Features |
42U & Earthing wire (RoHS, 14 AWG 300mm length) |
| 7 |
Dimension(Width*Depth) |
600mm*1000mm |
| 8 |
Maximum Static Load Capacity (KG) |
1000 KG |
| 9 |
Ventilation Percentage |
>70% High density ventilation door |
| 10 |
Color |
RAL 7021 Black |
| 11 |
Max. Open Angel |
180 degree |
| 12 |
Surface Treatment |
Powder coated |
| 13 |
19? Profile |
Galvanized coated (2.0mm) |
| 14 |
Side Panel |
Powder coating (1.2mm), removable side panel 4 part with Steel locking system for each part. |
| 15 |
Rear Door Option |
High-density double open ventilation door, SPCC 1.2mm with lock system |
| 16 |
Front Door Option |
High-density single open ventilation door, SPCC 1.2mm with lock system |
| 17 |
Raw Material |
SPCC |
| 18 |
PDU |
13Amp 6 way PDU UK type with 3meter power cable length. |
| 19 |
Plinth |
Height with 100MM/200MM option |
| 20 |
Fixed Shelf |
2 pcs |
| 21 |
Trox Tooling |
Steel & Color zinc |
| 22 |
Screw & Nuts |
M6?12 Steel & Color zinc |
| 23 |
Heavy Duty Castor & Adjustable Feet |
Four M12 adjustable feet & four 2? heavy duty castor |
| 24 |
Top Beam |
(1.5mm) SPCC with 4 nos fan. |
