| General | |
| Brand | TP-Link |
| Model | TP-Link XC220-G3 |
| Router Type | Wireless & Ethernet |
| Hardware | |
|
Data Transfer Rate (Wifi)
|
1200 Mbps |
|
WiFi Network Standards
|
IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
| LAN Network Standard | 10/100/1000 |
| WAN Network Standard | Not Applicable |
| Data Transfer Rate (Lan) | 1000 Mbps |
| Interface | |

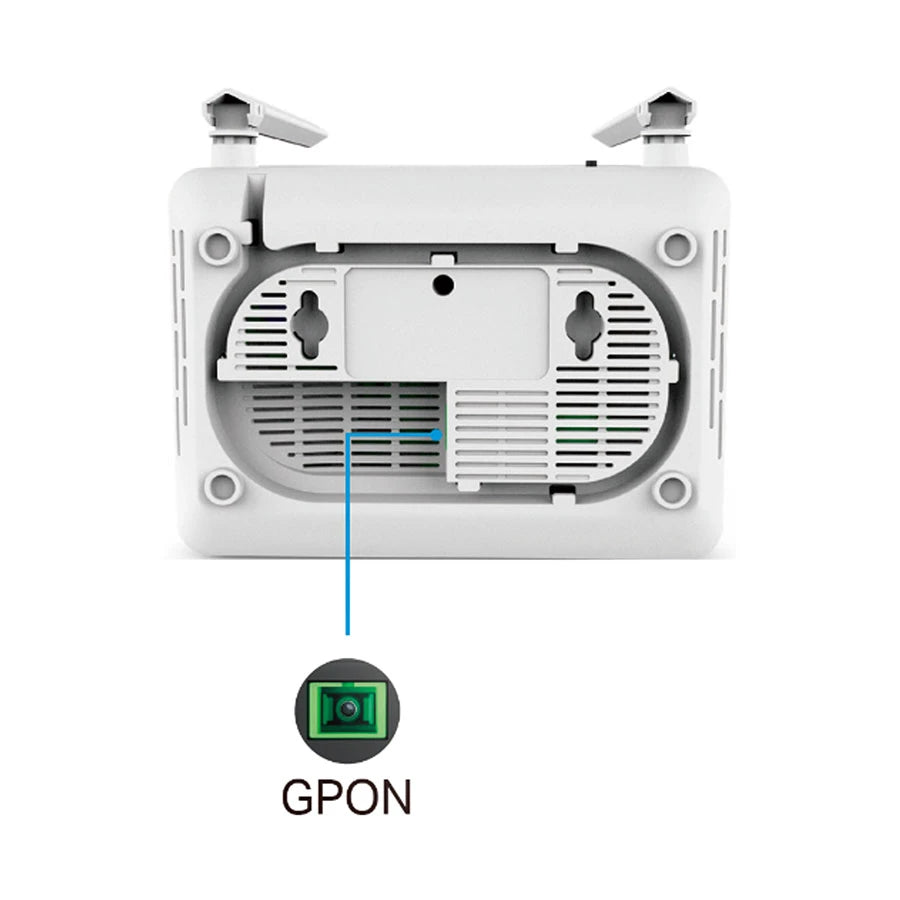

| Interface(s) | 2 x 10/100/1000 Mbps RJ45 LAN Ports, 1 x PON Port |
| Number of LAN Port | 2 |
| Internet Connectivity | WAN Only |
| SIM Card Slot Included | NO |
| Wireless | |
| Antenna (Type & Qty) | 2 x External Dual Band Antennas |
| Wi-Fi Generation | Wi-Fi 5 |
| Band | Dual |
| WiFi Coverage (Approximate) | 1501-2500 Sq. ft |
| Number of Concurrent User | 16-30 User |
| Performance | |
| Mesh Technology | Yes |
| MIMO Technology | No |
| Security | |
| Operating Frequency | 2.4 GHz, 5 GHz |
| VPN Support | Yes |
| Built in Antivirus | No |
| Electrical | |
| Power | 12V / 1.0A |
| Operating Temperature | 0 - 40 Degree C |
| Storage Temperature | -40 - 60 Degree C |
| Operating Humidity | 10% - 90% non-condensing |
| Storage Humidity | 5% - 90% non-condensing |
| Physical Description | |
| Button | WPS/Wi-Fi Button, RESET Button |
| Color | White |
| Warranty | |
| Warranty Details | 1 Year (Without Adapter) |
| Additional Info | |
| Feature | Superfast Dual Band WiFi: Up to 1.2 Gbps WiFi speeds, 300 Mbps on 2.4GHz, 867 Mbps on 5GHz. XPON Dual Modes: Supports GPON and EPON dual modes for flexible fiber internet access. EasyMesh Compatible: Provides whole home WiFi coverage with standard mesh technology. Smooth IPTV: Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming. Enhanced Security: Protect your network with firewalls and the latest WPA3 encryption. |
| Specialty | Full Gigabit Ports: Up to 10x faster than standard Ethernet, deliver lightning-fast wired performance. Compatct Fiber Tray Design: Store a redundant fiber cable inside and protect the fiber cable from breaking. Easy Setup: Set up your network in minutes with the powerful Aginet app. Remote Management: OMCI (ONT Management and Control Interface) and TR-069 protocols are supported. |
| Others | Data Rates: Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON), Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON). Signal Rate: 867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz. Transmit Power: 2.4 GHz: 26 dBm(EIRP), 5GHz: 28dBm (EIRP). Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics. Wireless Security: WPA/WPA2/WPA3 encryptions. Mesh Technology: EasyMesh Compatible, and support 802.11k/v/r. DHCP: Server, Client, DHCP Client List, Address Reservation, DHCP Relay. Port Forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP. Quality of Service: Hardware QoS. Dynamic DNS: DynDns, NO-IP. VPN Pass-Through: PPTP, L2TP, IPSec Pass-through. Management: Local management: WebGUI management, Aginet app management, Remote management: Aginet ACS, OMCI, TR-069, TR-098, TR-181,TR-111,TR-143, Cloud management: TP-Link Aginet Unified Cloud (TAUC). Security: NAT Firewall, Access Control, MAC/IP/URL Filtering, IP and MAC Address Binding, Defense Denial of Service (DoS), SYNFlooding, Ping of Death. Advanced Functions: Parental Controls, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3. Protocols: IPv4, IPv6. Package Contents: AC1200 Wireless XPON Router XC220-G3, RJ45 Ethernet Cable, Power Adapter, Quick Installation Guide. System Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux. Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser. |
| Country Of Origin | China |
| Made in/ Assemble | China |
Overview
Features of TP-Link XC220-G3 Network Router In Bangladesh
Brand - TP-Link, Model - TP-Link XC220-G3, Router Type - Wireless & Ethernet, Data Transfer Rates (WiFi) - 1200 Mbps, WiFi Network Standards - IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz, LAN Network Standard - 10/100/1000, WAN Network Standard - Not Applicable, Data Transfer Rate (Lan) - 1000 Mbps, Interface - 2 x 10/100/1000 Mbps RJ45 LAN Ports, 1 x PON Port, Number of WAN Port - 0, Number of LAN Port - 2, USB Interface - No, Antenna (Type & Qty) - 2 x External Dual Band Antennas, Operating Frequency - 2.4GHz, 5GHz, Wi-Fi Generation - Wi-Fi 5, Band - Dual, WiFi Coverage (Approximate) - 1501-2500 Sq. ft, Number of Concurrent User - 16-30 User, Internet Connectivity - WAN Only, SIM Card Slot Included - No, Mesh Technology - Yes, MIMO Technology - No, VPN Support - Yes, Voice Assistant - No, Built in Antivirus - No, Button - WPS/Wi-Fi Button, RESET Button, Power - 12V / 1.0A, Operating Temperature - 0 - 40 Degree C, Storage Temperature - -40 - 60 Degree C, Operating Humidity - 10% - 90% non-condensing, Storage Humidity - 5% - 90% non-condensing, Color - White, Features - Superfast Dual Band WiFi: Up to 1.2 Gbps WiFi speeds, 300 Mbps on 2.4GHz, 867 Mbps on 5GHz. XPON Dual Modes: Supports GPON and EPON dual modes for flexible fiber internet access. EasyMesh Compatible: Provides whole home WiFi coverage with standard mesh technology. Smooth IPTV: Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming. Enhanced Security: Protect your network with firewalls and the latest WPA3 encryption., Speciality - Full Gigabit Ports: Up to 10x faster than standard Ethernet, deliver lightning-fast wired performance. Compatct Fiber Tray Design: Store a redundant fiber cable inside and protect the fiber cable from breaking. Easy Setup: Set up your network in minutes with the powerful Aginet app. Remote Management: OMCI (ONT Management and Control Interface) and TR-069 protocols are supported., Others - Data Rates: Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON), Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON). Signal Rate: 867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz. Transmit Power: 2.4 GHz: 26 dBm(EIRP), 5GHz: 28dBm (EIRP). Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics. Wireless Security: WPA/WPA2/WPA3 encryptions. Mesh Technology: EasyMesh Compatible, and support 802.11k/v/r. DHCP: Server, Client, DHCP Client List, Address Reservation, DHCP Relay. Port Forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP. Quality of Service: Hardware QoS. Dynamic DNS: DynDns, NO-IP. VPN Pass-Through: PPTP, L2TP, IPSec Pass-through. Management: Local management: WebGUI management, Aginet app management, Remote management: Aginet ACS, OMCI, TR-069, TR-098, TR-181,TR-111,TR-143, Cloud management: TP-Link Aginet Unified Cloud (TAUC). Security: NAT Firewall, Access Control, MAC/IP/URL Filtering, IP and MAC Address Binding, Defense Denial of Service (DoS), SYNFlooding, Ping of Death. Advanced Functions: Parental Controls, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3. Protocols: IPv4, IPv6. Package Contents: AC1200 Wireless XPON Router XC220-G3, RJ45 Ethernet Cable, Power Adapter, Quick Installation Guide. System Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux. Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser., Warranty - 1 Year (Without Adapter), Country of Origin - China, Made in/ Assemble - China
