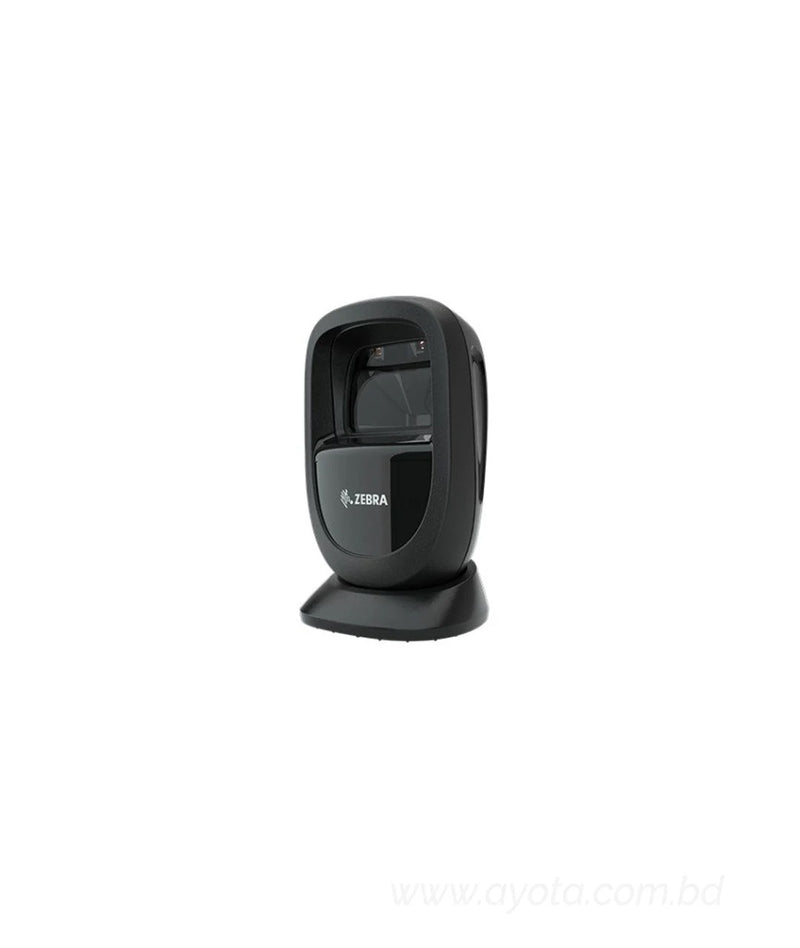

Product Highlights: - Scans all 1D, 2D, QR and e-script codes - Faster than the DS9208 scanner - Scans barcodes from screens - Durable and resistant to drops, dust and spills - See it in 3D below before you buy
Specification
Dimensions
5.7 in. H x 3.4 in. W x 3.3 in. D
14.5 cm. H x 8.6 cm. W x 8.3 cm. D
Weight
11.2 oz. / 318.0 g
Input Voltage Range
4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC
external power supply
Operating Current at
Nominal Voltage (5.0V)
Presentation mode: 335mA Trigger mode: 350mA
Standby Current (Idle) at Nominal Voltage (5.0V)
Presentation mode: 135mA Trigger mode: 75mA
Color
Alpine White, Midnight Black
Supported Host
Interfaces
USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX
over RS485
Keyboard Support
Supports over 90 international keyboards
Electronic Article
Surveillance
Compatible with Checkpoint EAS
deactivation system
User Indicators
Good decode LEDs, rear view LEDs, beeper
(Adjustable tone and volume)
Swipe Speed
(Presentation)
Up to 120 in./305 cm. per second for 13 mil UPC in optimized mode
Light Source
Aiming pattern: circular 617 nm amber LED
Illumination
660 nm Hyper Red LED
Imager Field of View
52° H x 33° V nominal
Image Sensor
1280 x 800 pixels
Minimum Print
Contrast
15%
Skew Tolerance
+/-60°
Pitch Tolerance
+/-60°
Roll Tolerance
360°
Operating Temperature
32.0° F to 122.0° F / 0.0° C to 50.0° C
Storage Temperature
-40.0° F to 158.0° F / -40.0° C to 70.0° C
Humidity
5% to 95% RH, non-condensing
Drop Specification
Designed to withstand multiple drops at
5.0 ft. / 1.5 m to concrete
Tumble Specification
Designed to withstand 1,000 tumbles in
1.5 ft. /0.5 m tumbler
Environmental Sealing
IP52
Electrostatic Discharge
(ESD)
ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV indirect
Ambient Light
Immunity
0 to 10,000 foot-candles/0 to 107,700 Lux
Environmental
EN 50581:2012
RoHS 2011/65/EU (2015/863) – EN 50581:2012, IEC 63000
REACH 1907/2006
Electrical Safety
IEC 62368-1 2nd ed.
EN 62368-1:2014/AC:2015
UL/IEC 60950-1, 2nd ed.
CAN/CSA C22.2 No.60950-1, 2nd ed.
LED Safety
IEC 62471:2006 (Ed.1.0) EN 62471:2008 (LED)
EMI/RFI
FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS
1D
Code 39, Code 128, Code 93, Codabar/NW7, Code
11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
2D
PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, securPharm, DotCode, Dotted DataMatrix
